GL11-025-040-VIS

followfollow

price:

$21.70

number:

GL11-025-040-VIS

Lead time:

In Stock

quantity:

Download product related materials（Gray indicates that there is no such file，Unable to download） :

GL11-025-040-VIS

Diameter (mm)25.00
EFL(mm)40.00
BFL(mm)35.89
R1(mm)20.65
Central Thickness(mm)6.21
Te(mm)2.00

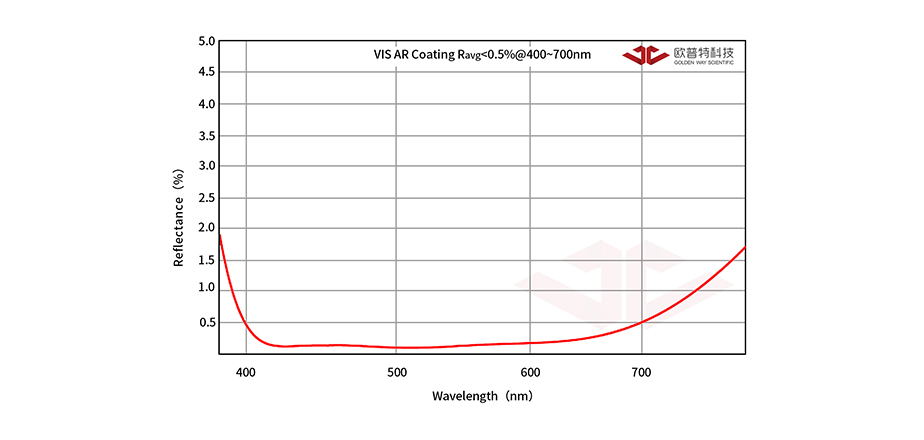

CoatingRavg<0.5% @400~700nm
MaterialH-K9L
Compatible lens ringPN35022-LM250-S
Design wavelength587.6nm
Dia. Tolerance(mm)+0.0/-0.1
CT tolerance±0.2
Surface irregularityλ/4@632.8nm
EFL tolerance±2%
Centration3′
Surface quality60/40
Bevel0.2mmX45°
RoHSCompliant
